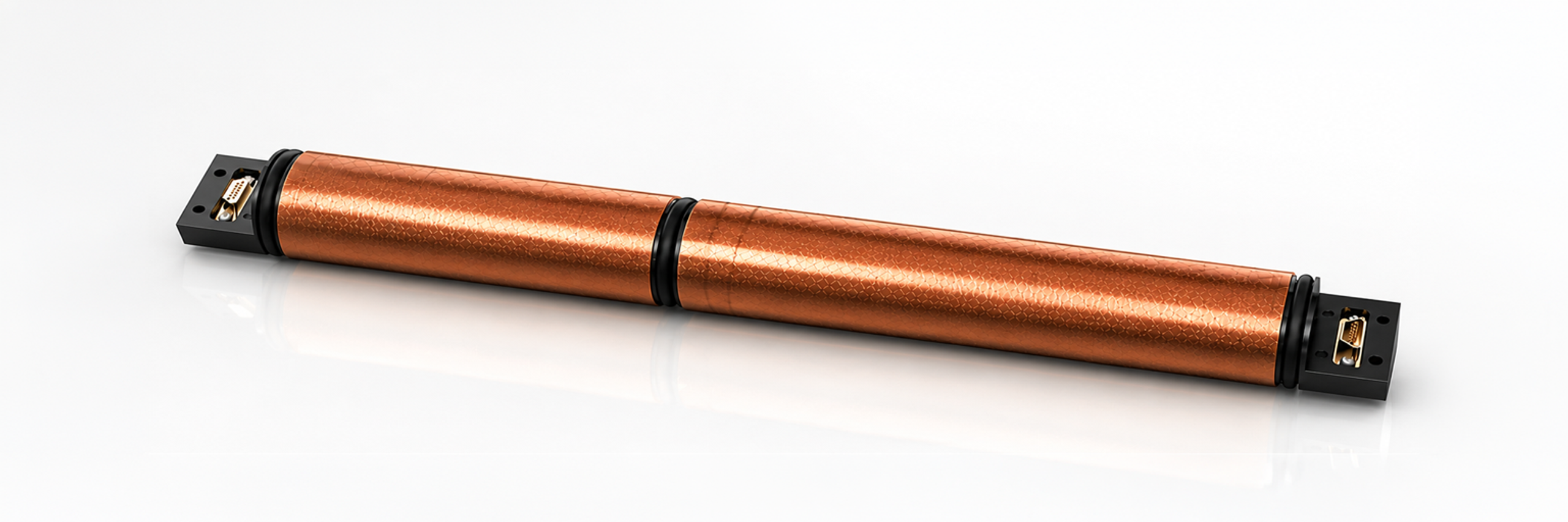

V2 MWD Gamma Detector Module-HID Sensor
Titan’s ruggedized MWD Gamma Detector Module (MWD-GDM) has been field proven in both conventional MWD drilling applications and in environments associated with electromagnetic (EM-MWD) systems. It has also proven an effective technology for industrial, military, and medical applications.
Product summary
Titan’s ruggedized MWD Gamma Detector Module (MWD-GDM) has been field proven in both conventional MWD drilling applications and in environments associated with electromagnetic (EM-MWD) systems. It has also proven an effective technology for industrial, military, and medical applications.
The tool’s scintillation crystals and integral PMT assemblies are manufactured using Hunting’s proprietary assembly and shock-mounting technology. This technology provides outstanding protection against damage under higher shock and vibration drilling conditions.
Sensor output is derived from digital filtering and random noise rejection filter provided by onboard microcontroller.
All HID sensors are vibration tested to 30Grms in 3 axis.
Multi level, production vibration testing ensures premium detector performance.
Applications
Conventional MWD/LWD systems
Electromagnetic MWD systems
Retrievable and collar mounted tools
Formation logging and Geosteering
Features
Proprietary shock and vibration technology
Continuous operation at 175°C (347°F)
High sensitivity and repeatability
Low power operations, optimized for battery operations to maximize battery life
MDM 15-pin connectors with industry standard through wiring allow drop-in replacement in most MWD systems
Compact and rugged. High survivability in underbalanced and air drilling environments.
Unaffected by MWD pulser or EM transmitter electrical noise
Detector design minimizes vibration and shock induced false counts
Optional grounded or ungrounded (floating) chassis for EM applications
