MWD Components

Specialty Supply offers a thorough catalog of measurement while drilling (MWD) components and parts necessary to keep all of your directional drilling equipment up and running.

Product summary

Specialty Supply offers a thorough catalog of measurement while drilling (MWD) components and parts necessary to keep all of your directional drilling equipment up and running.

Even the most interior, and smallest of MWD parts are available. Blades, bow springs, plug shafts, threaded rings, thread and box protectors, vent plugs, and drilling piston caps are just a few of the MWD parts available.

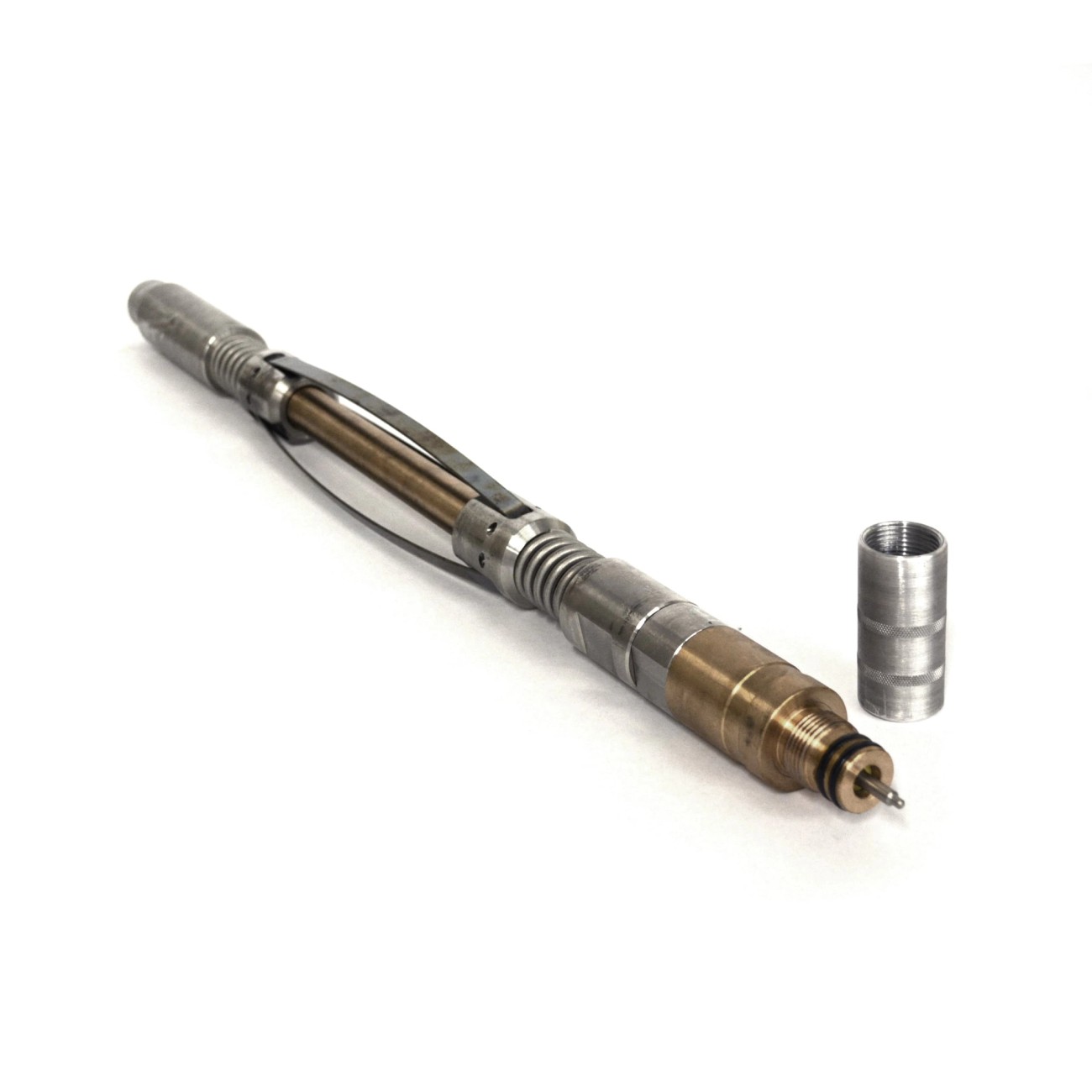

  • 01-1000

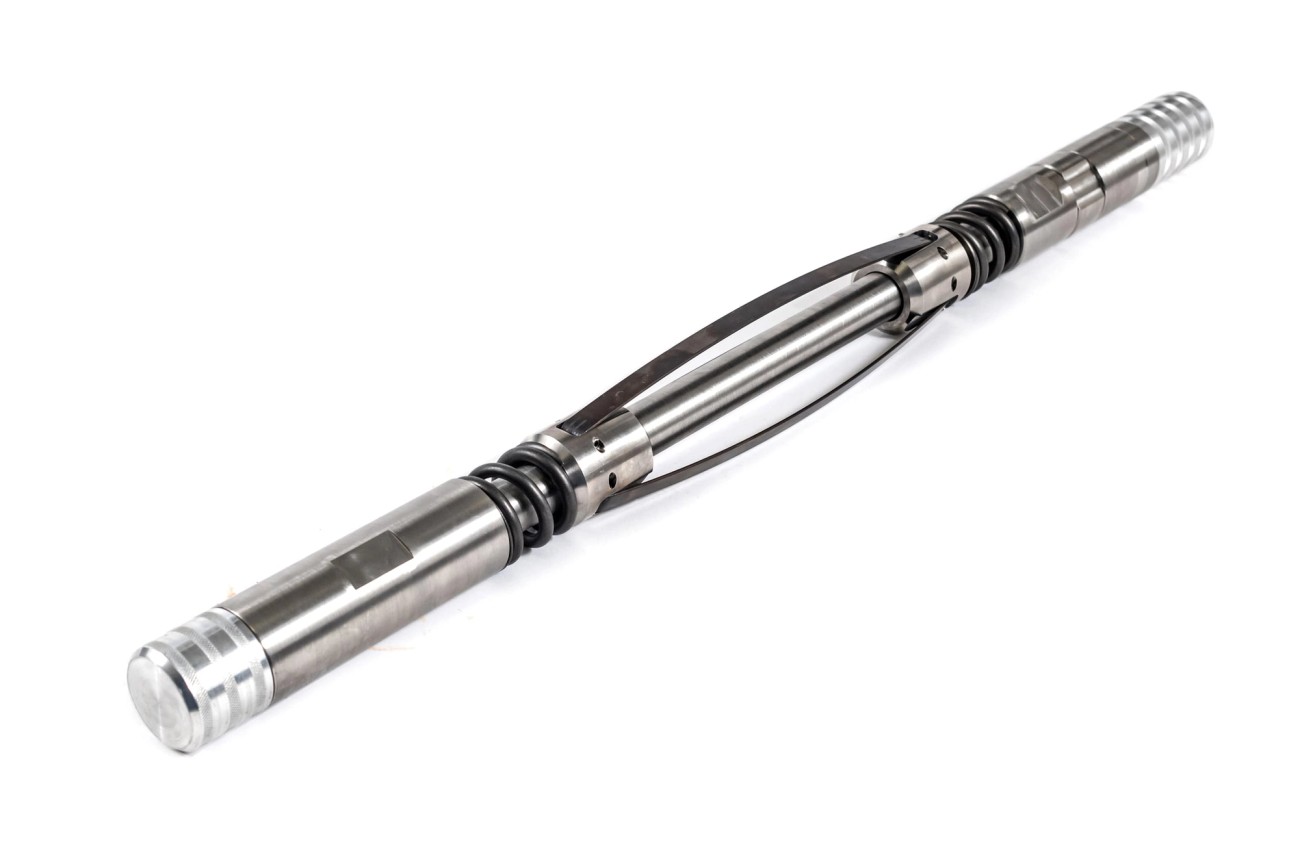

    Centralizer, Conductive (Adjustable) - 1.75” OD

    with Blades, Pins & Springs

  • 01-1002

    Low Profile Centralizer Blade (Bow Spring)

  • 01-1003

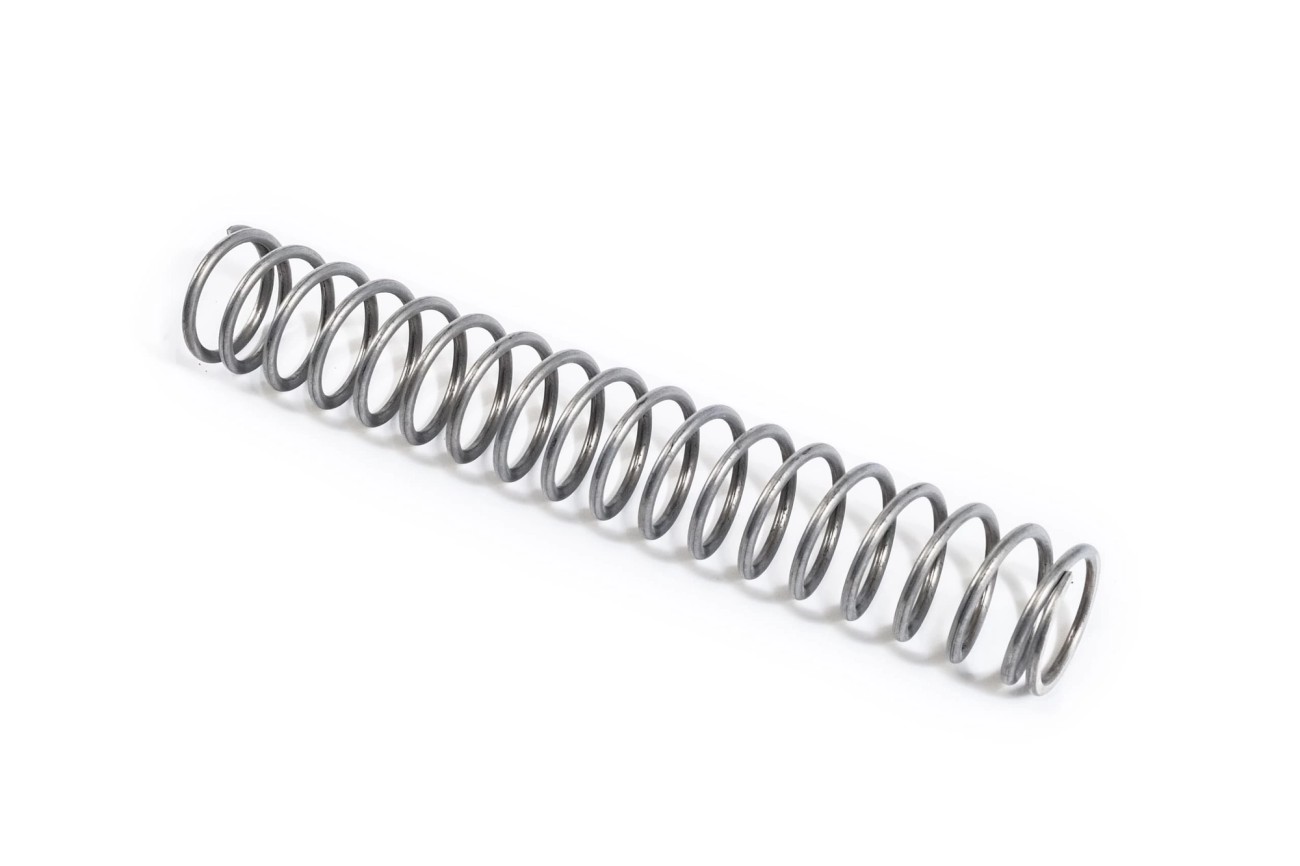

    Coil Spring (for 1.75” OD Centralizer)

  • 01-1004

    Collar, Bow Spring, (3 Blade)

  • 1-1006

    Collar, Bow Spring, (4 Blade) MWD

  • 01-1010

    Centralizer Non-Conductive (Adjustable) - 100% S.S. 1.75” OD

    with Blades, Pins & Springs

  • 01-1011

    Centralizer Conductive (Adjustable) - 100% S.S. 1.75” OD

    with Blades, Pins & Springs

  • 01-1098

    Roll Pin - Spiral (for Bow Spring Collar)

  • 05-1000

    Centralizer Non-Conductive (Adjustable) - 1.75” OD

    with Blades, Pins & Springs

  • 05-1001

    Tube Collet Stabilizer Assembly - for 1.760” ID (Other sizes available)

  • 05-1001NM

    Tube Collet Stabilizer Assembly - for 1.760” ID (Other sizes available)

    Non magnetic

  • 05-1004

    Tube Collet Stabilizer Assembly - 1.79” ID; 2-13/16” OD

  • 05-1001NM

    Tube Collet Stabilizer Assembly - 1.79” ID; 2-13/16” OD

    Non magnetic

  • 05-1007

    Tube Collet Stabilizer Assembly - 1.875” ID

    BeCu

  • 05-1007NM

    Tube Collet Stabilizer Assembly - 1.875” ID

    BeCu - Non-Magnetic

  • 10-1100

    Repair Kit for Centralizer (Conductive Type)

  • 30-1009

    MWD Fishing Neck (Standard)

    Nitronic 50 HS

  • 30-1010

    MWD Fishing Neck (Top)

    Nitronic 50 HS (Spearpoint with ACME Connection) for Top Shaft

  • 30-1010-P

    Dowel Pin - 1/4" OD X 1-1/2" Length

    for MWD Fishing Neck

  • 30-1011

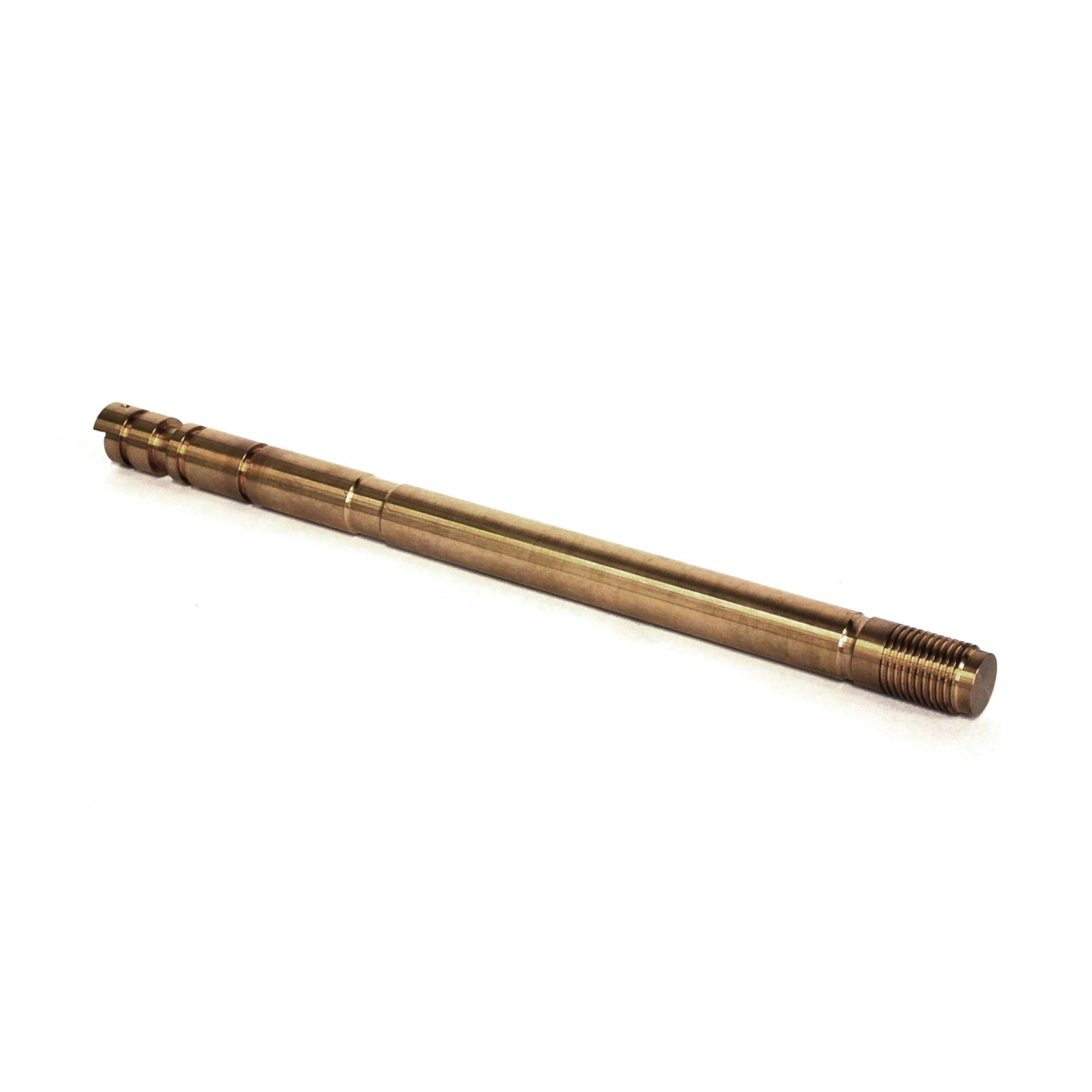

    Top Shaft

    BeCu HT (for connection with MWD Fishing Neck)

  • 30-1013

    Searpoint Assembly

    Nitronic 50 HS (Fishing Neck & Top Shaft All-in-one-Part)

  • 30-1015

    Top Plug Shaft

    BeCu HT (Solid Dummy)

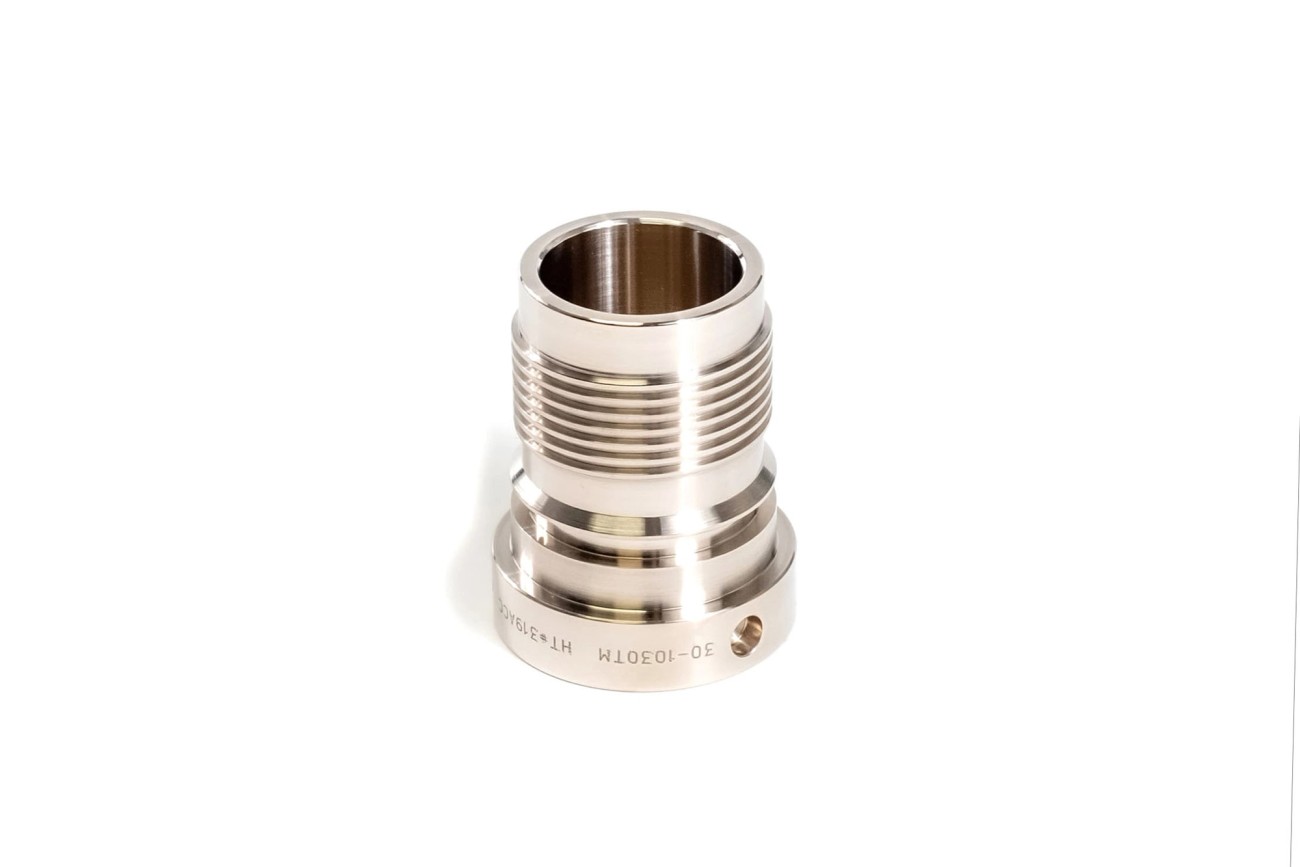

  • 30-1030

    Threaded Ring

    BeCu HT

  • 30-1040

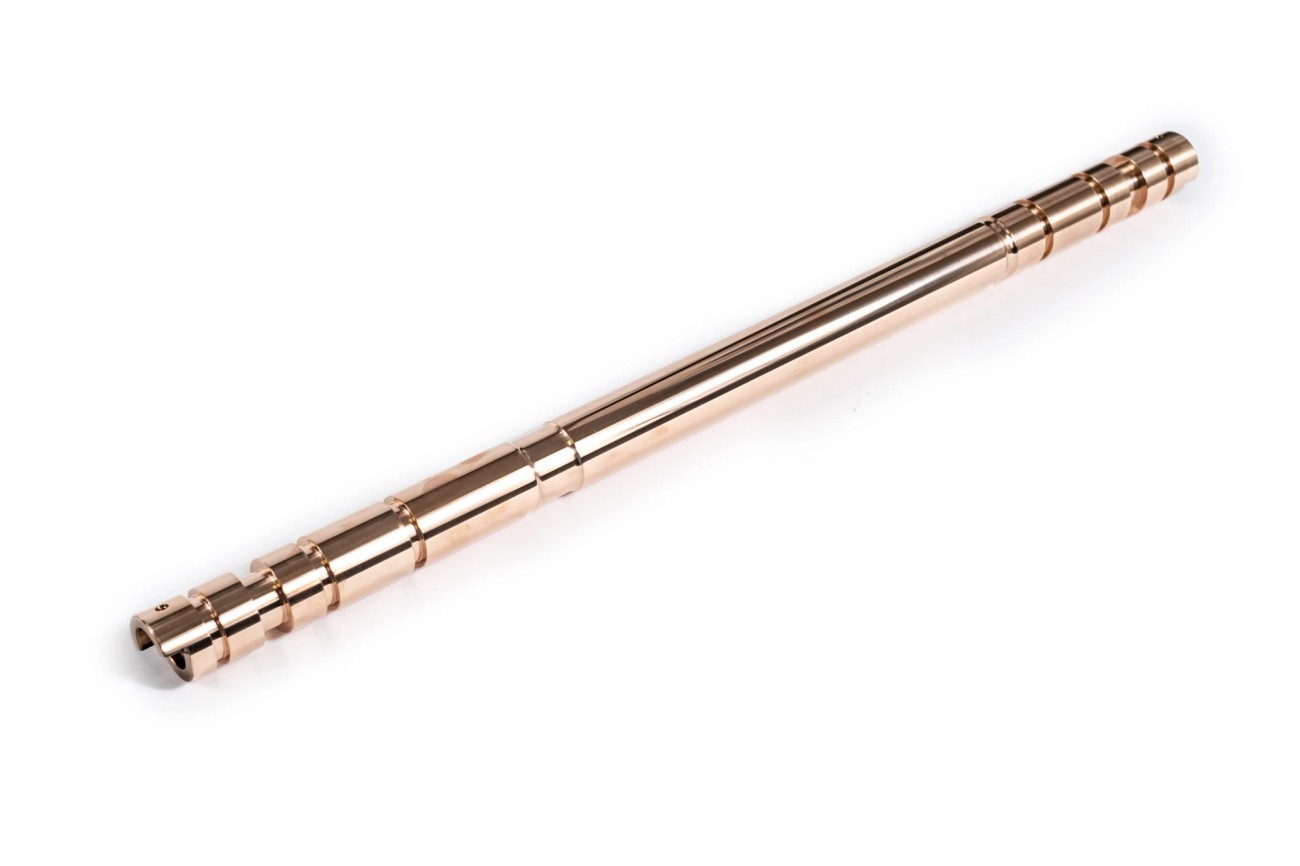

    Interconnect Shaft

    BeCu HT

  • 30-1040W

    Interconnect Shaft

    Wired

  • 30-1060

    Bumper Sleeve

    1.94" OD

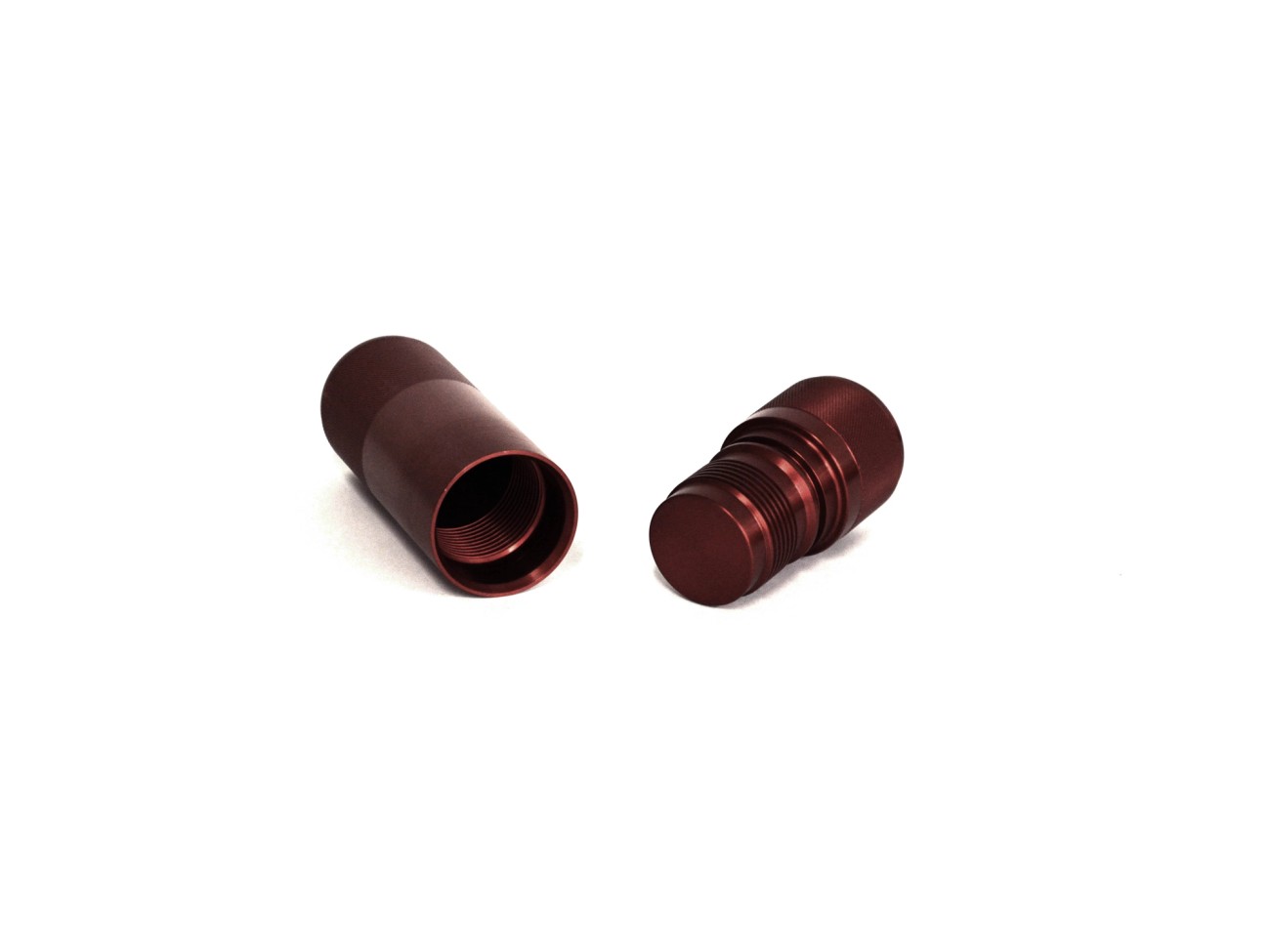

  • 30-1090

    Thread Protector (Female for Male Thread)

    Alum - Red

  • 30-1090

    Thread Protector (Male for Female Thread)

    Alum - Red

  • 30-2011

    Interconnect Housing

    Nit 50 HS

  • 30-2025

    Bulkhead Retainer

    (Bottom) 45 Degree Angle, BeCu

  • 30-2050

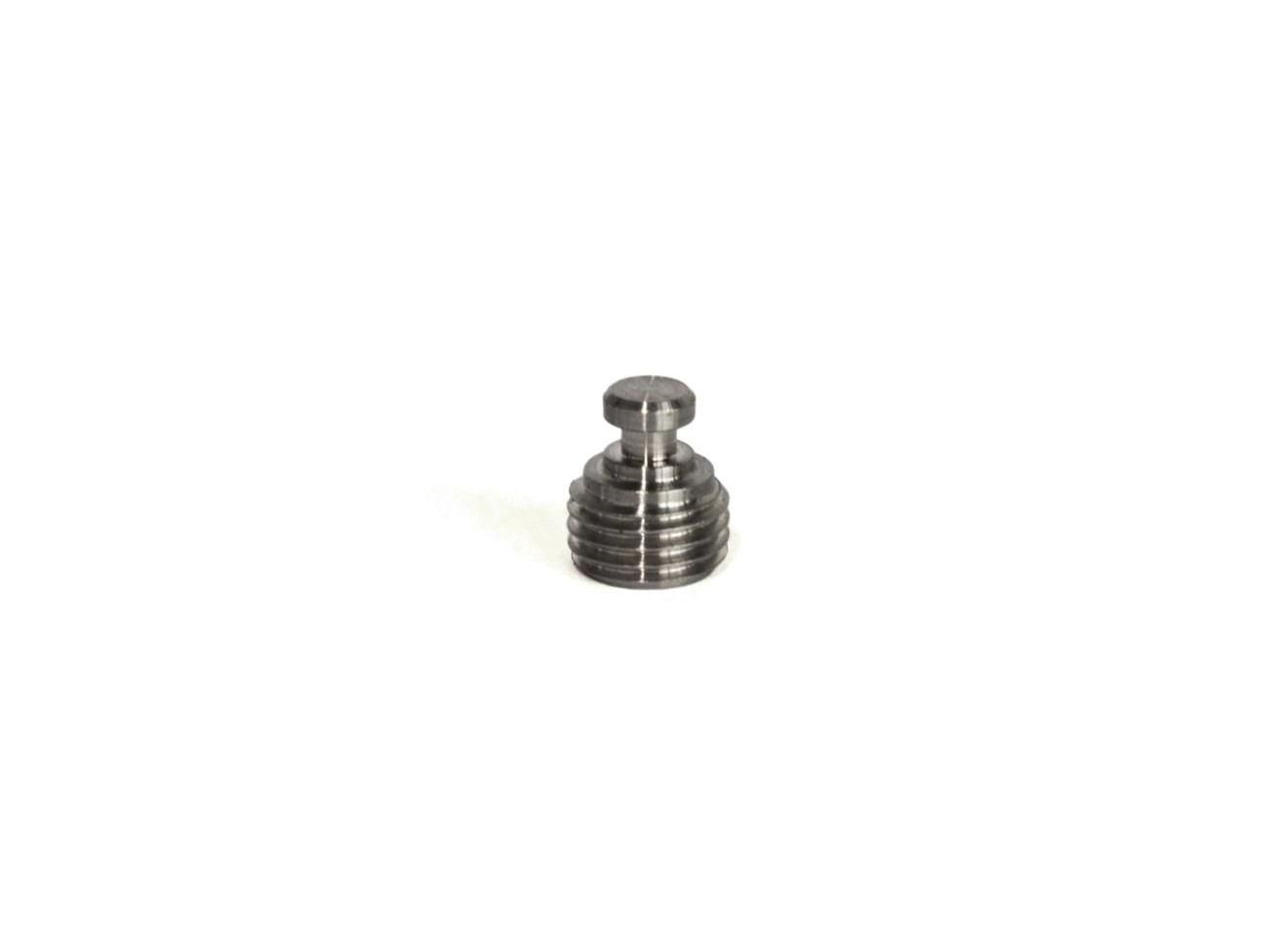

    Vent Plug (5/16" Hex)

    Stainless

  • 30-2051

    Vent Plug (1/4" Hex)

    Stainless

  • 30-2052

    Vent Plug (Slotted)

    Stainless

  • 30-2070

    Intermodule End (No Holes)

    BeCu HT

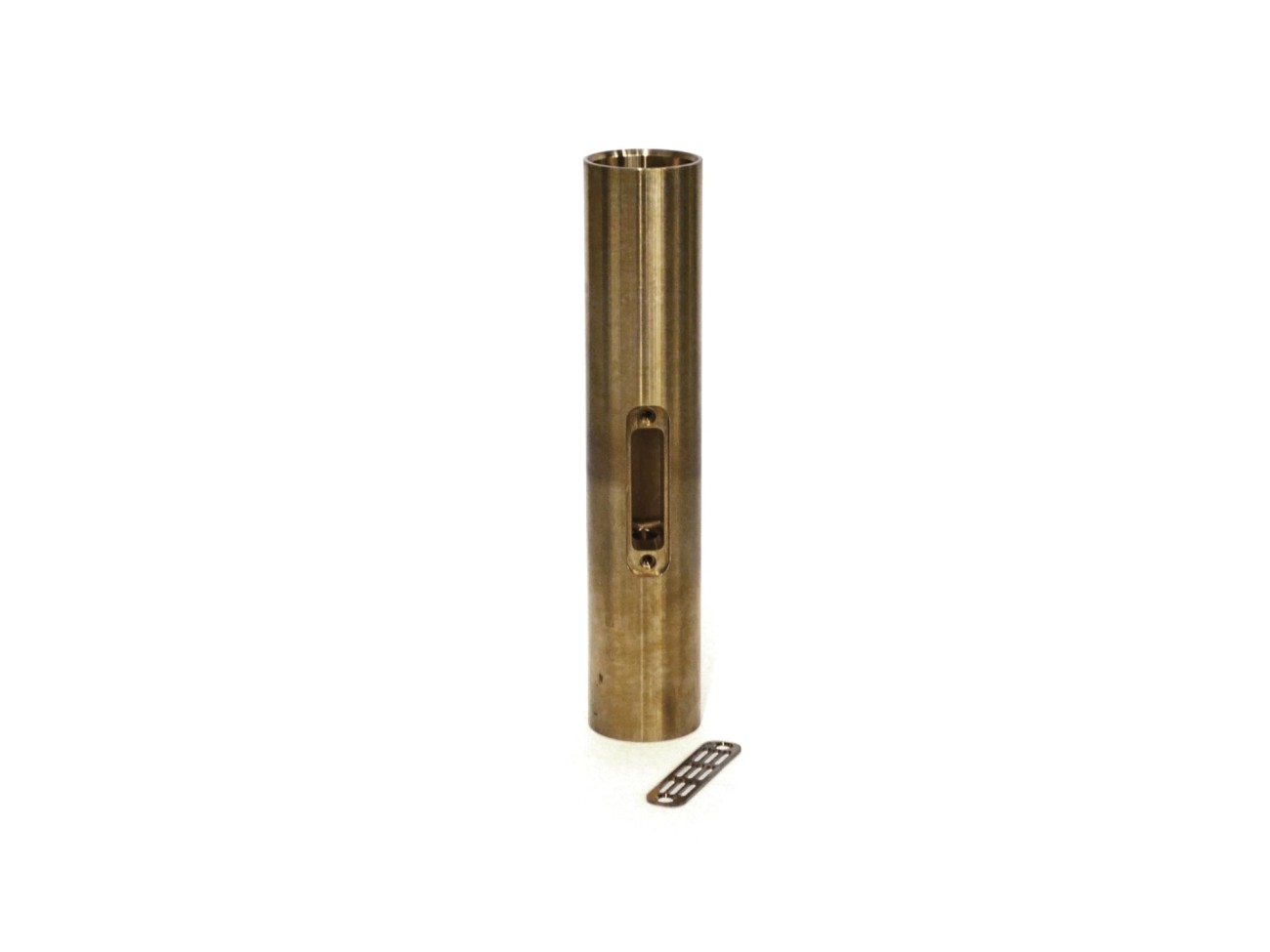

  • 30-2087

    Pressure Housing - Solenoid 14.200"

    BeCu HT

  • 30-2088

    Pressure Housing - Gamma 24.000"

    BeCu HT

  • 30-2089

    Pressure Housing - Pulser Driver 30.750"

    BeCu HT

  • 30-2090

    Pressure Housing - Battery 51.850"

    BeCu HT

  • 30-2091

    Pressure Housing - XXT 53.550"

    BeCu HT

  • 30-2092

    Pressure Housing - XXT2 54.000"

    BeCu HT

  • 30-2093

    Pressure Housing - Sensor 62.750"

    BeCu HT

  • 30-4040

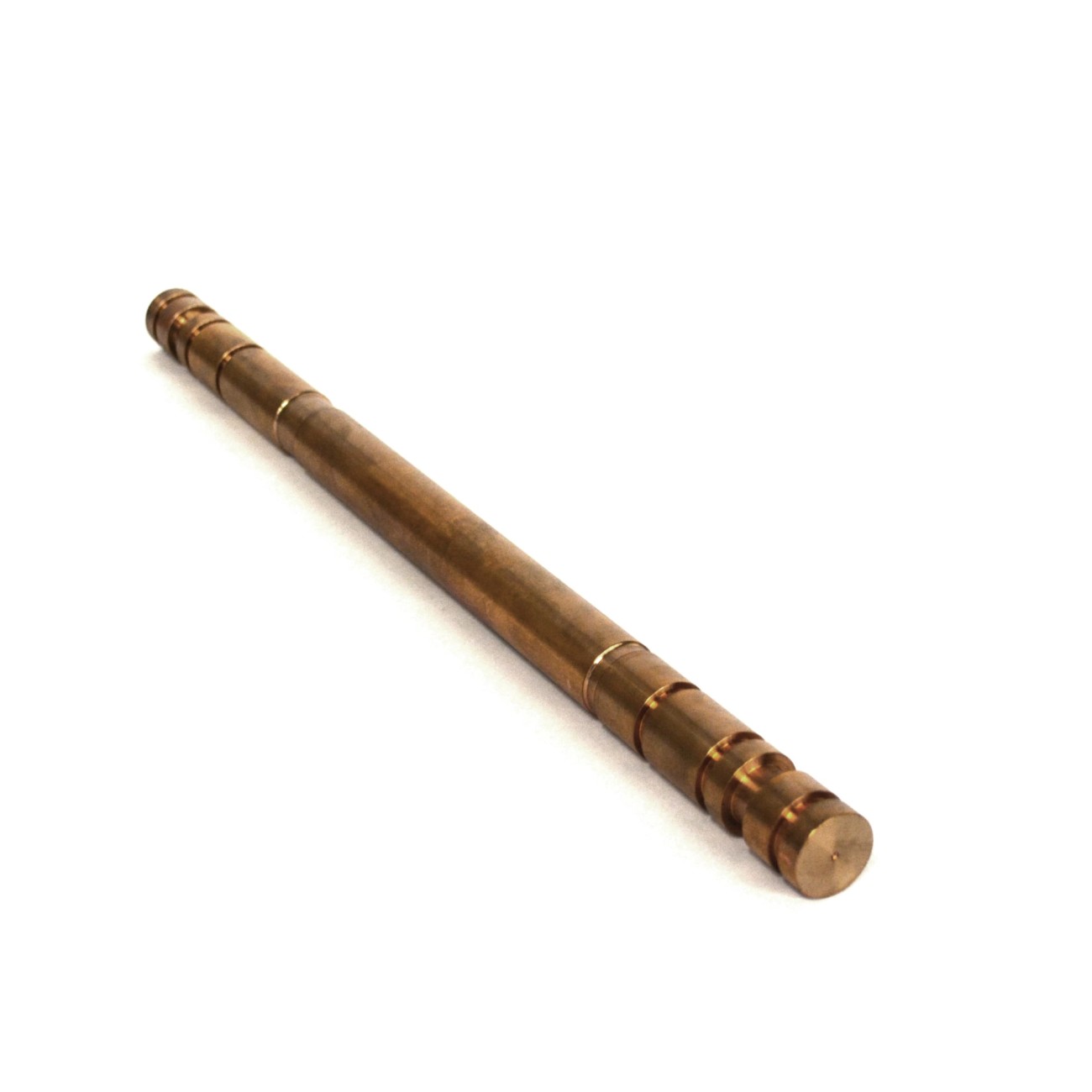

    Intermodule Shaft

    BeCu HT

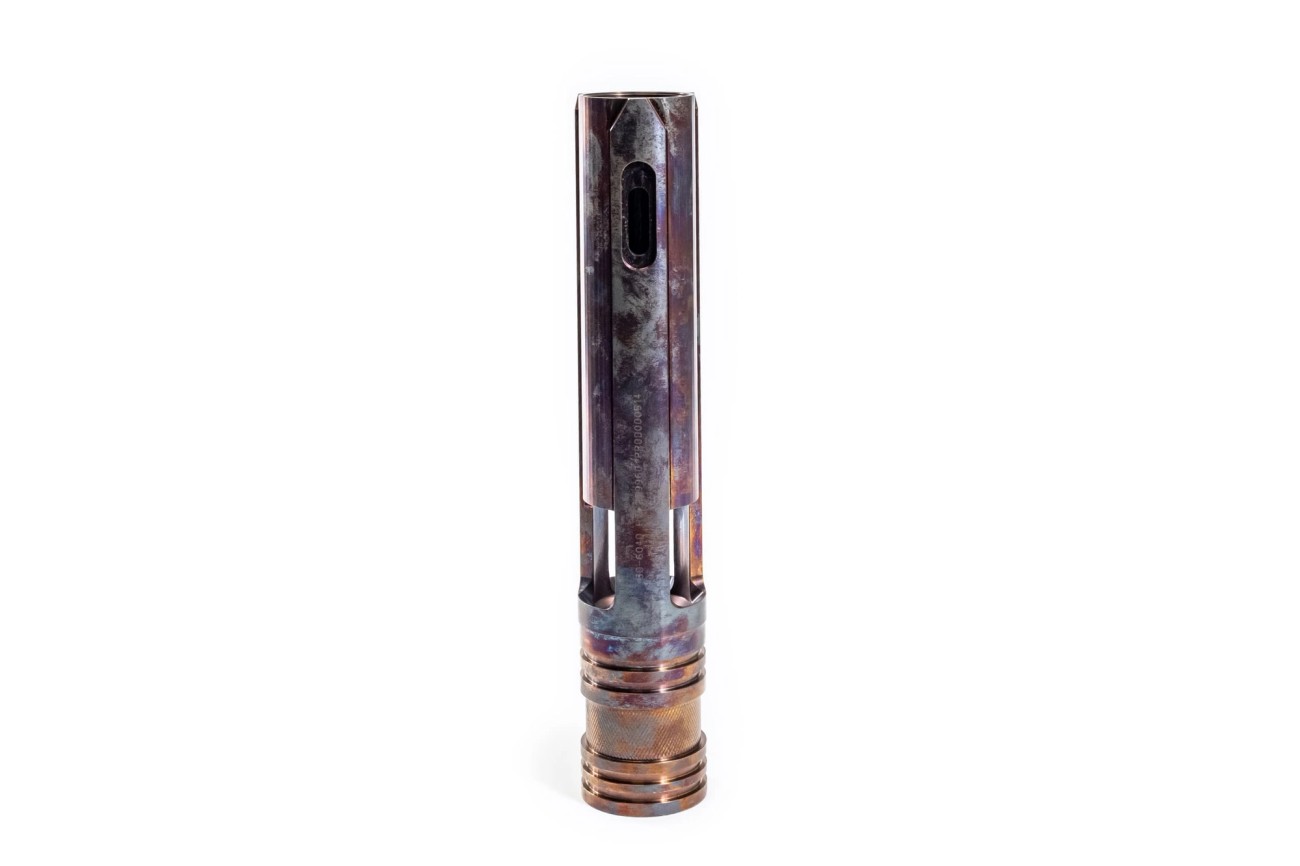

  • 30-5070

    Screen Housing

    BeCu HT

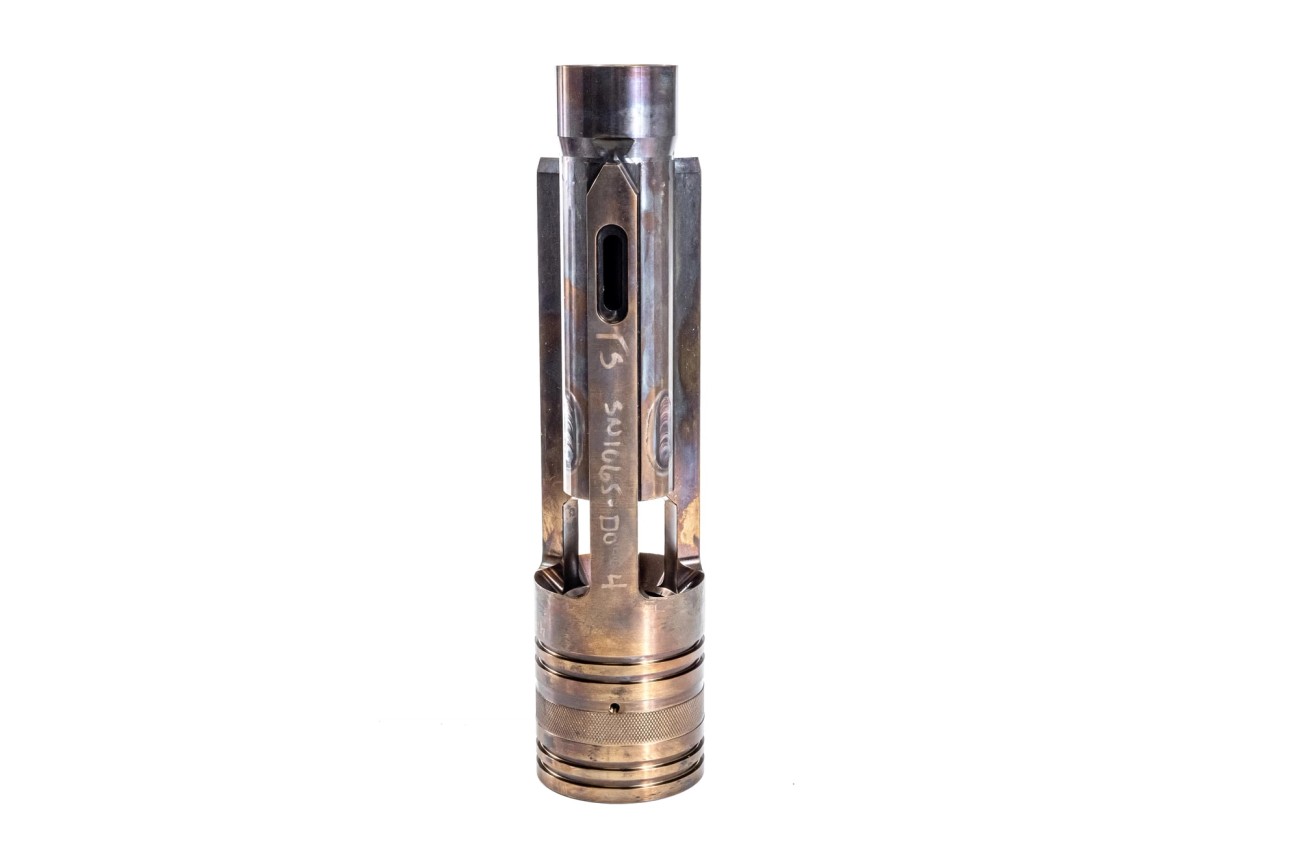

  • 30-5071

    Screen Housing (with Fluid By-Pass)

    BeCu HT

  • 30-5094

    Piston Cap - 17-4 HT

    4 Poly Pak Style

  • 30-5095

    Spring

    Main (MWD)

  • 30-5110

    Pulser Helix - 17-4 HT; 1.160 ID

    Standard

  • 30-5111

    Pulser Helix - 17-4 HT; 1.160 ID

    Old style

  • 30-5112

    Pulser Helix - 17-4 HT; 1.160 ID

    With Wrench Flats

  • 30-5113

    Pulser Helix - 17-4 HT; 1.160 ID

    With Wrench Flats and ID Bored Out

  • 30-5120

    Oil Fill Plug (Hex)

    Nitronic 50

  • 30-5158

    Lower End Assembly

  • 30-6013

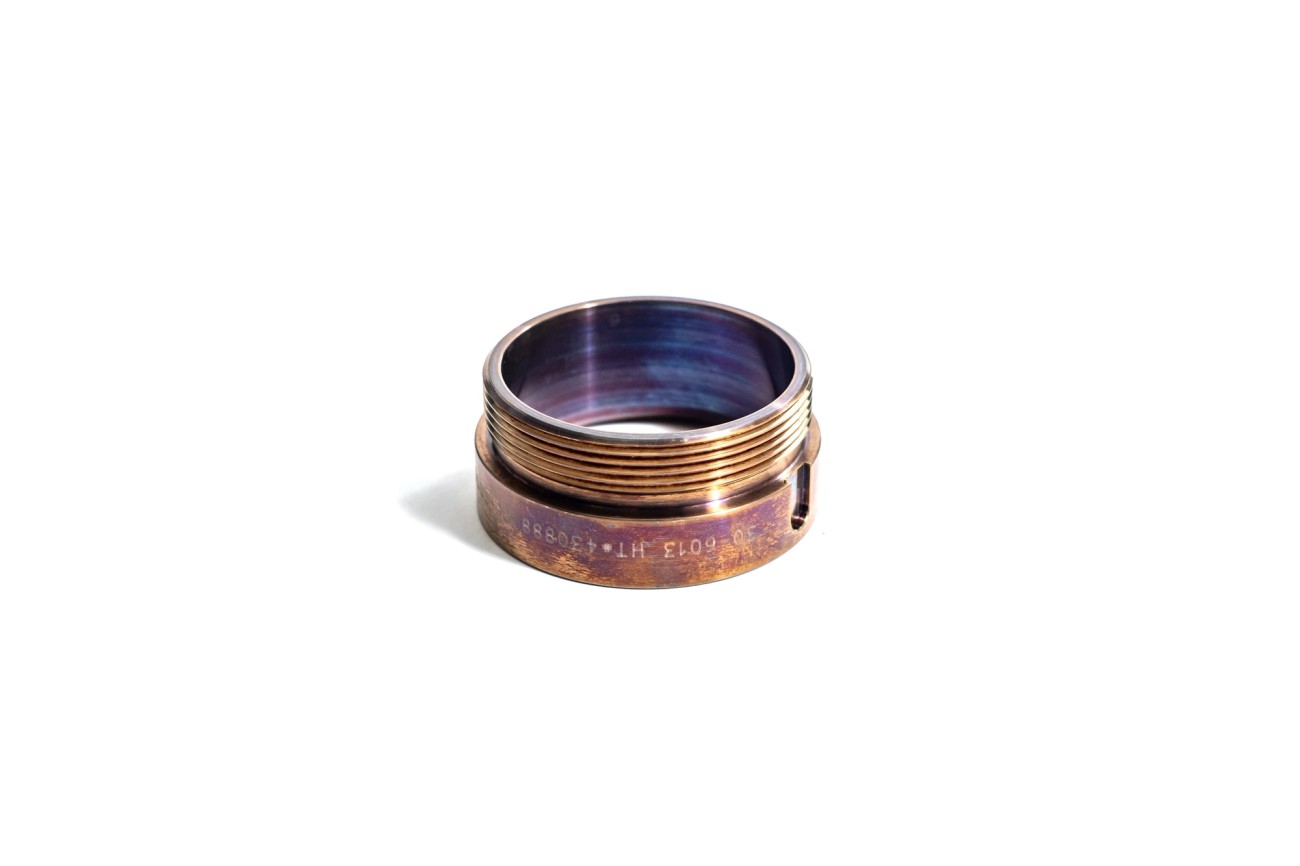

    Wear Cuff - Threads 2.00" - 16"

    Rounded span wrench slots-open faces

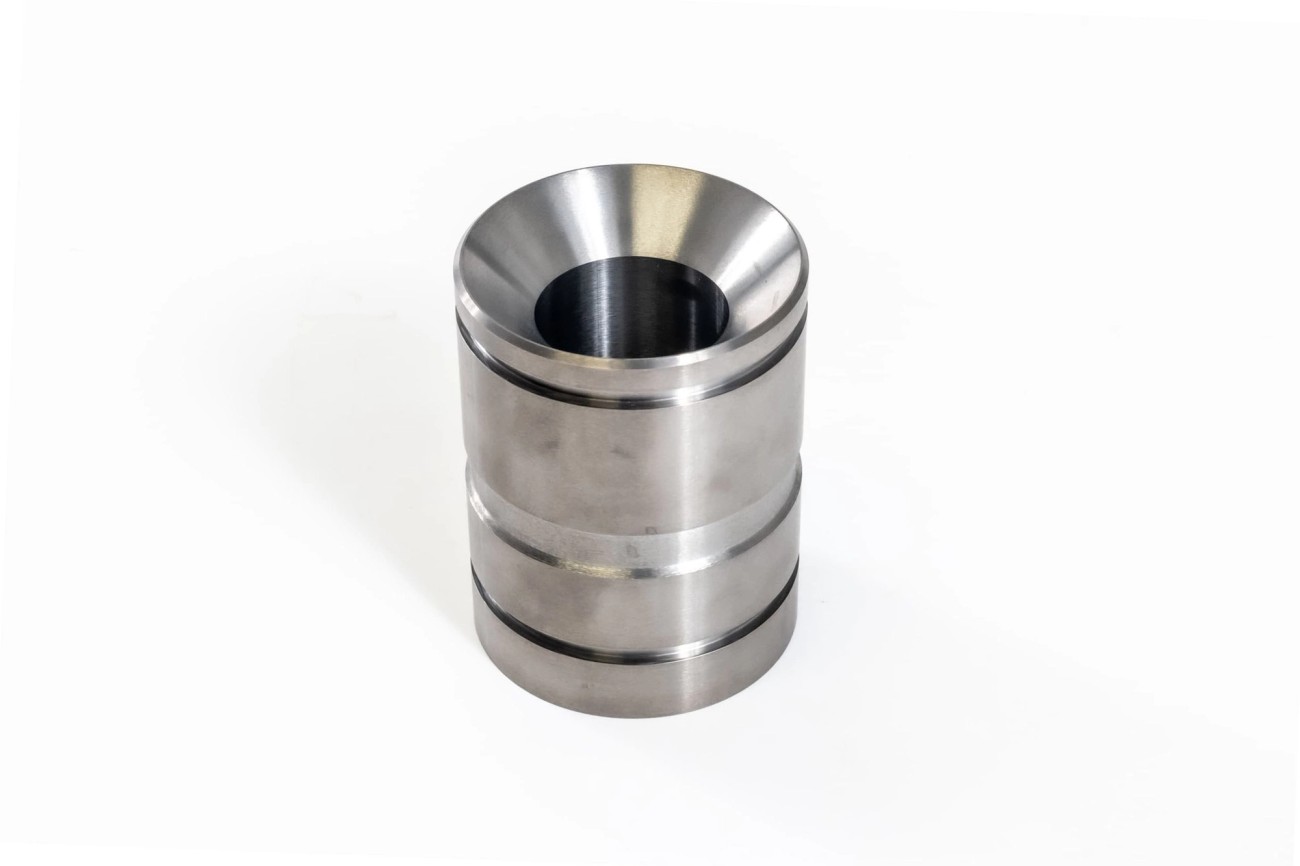

  • 30-6035

    Bottom Sleeve - 17-4HT

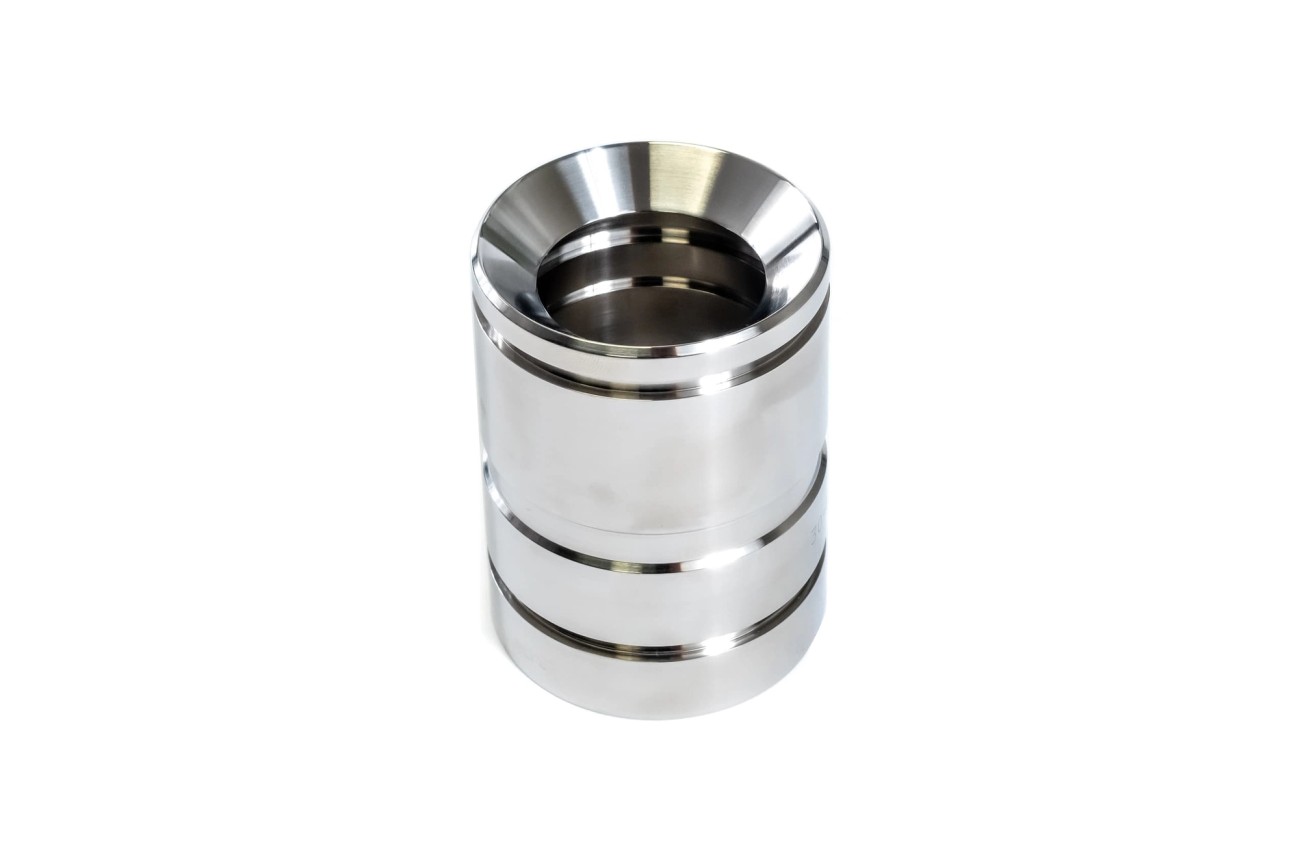

  • 30-6035-1.25TC

    Bottom Sleeve - 1.25" Orifice

    All in one, Tungsten Carbide

  • 30-6035-1.28TC

    Bottom Sleeve - 1.28" Orifice

    All in one, Tungsten Carbide

  • 30-6035-1.31TC

    Bottom Sleeve - 1.31" Orifice

    All in one, Tungsten Carbide

  • 30-6035-1.35TC

    Bottom Sleeve - 1.35" Orifice

    All in one, Tungsten Carbide

  • 30-6035-1.40TC

    Bottom Sleeve - 1.40" Orifice

    All in one, Tungsten Carbide

  • 30-6035-1.45TC

    Bottom Sleeve - 1.45" Orifice

    All in one, Tungsten Carbide

  • 30-6035-1.50TC

    Bottom Sleeve - 1.50" Orifice

    All in one, Tungsten Carbide

  • 30-6035-1.55TC

    Bottom Sleeve - 1.55" Orifice

    All in one, Tungsten Carbide

  • 30-6035-1.55TC

    Bottom Sleeve - 1.60" Orifice

    All in one, Tungsten Carbide

  • 30-6040

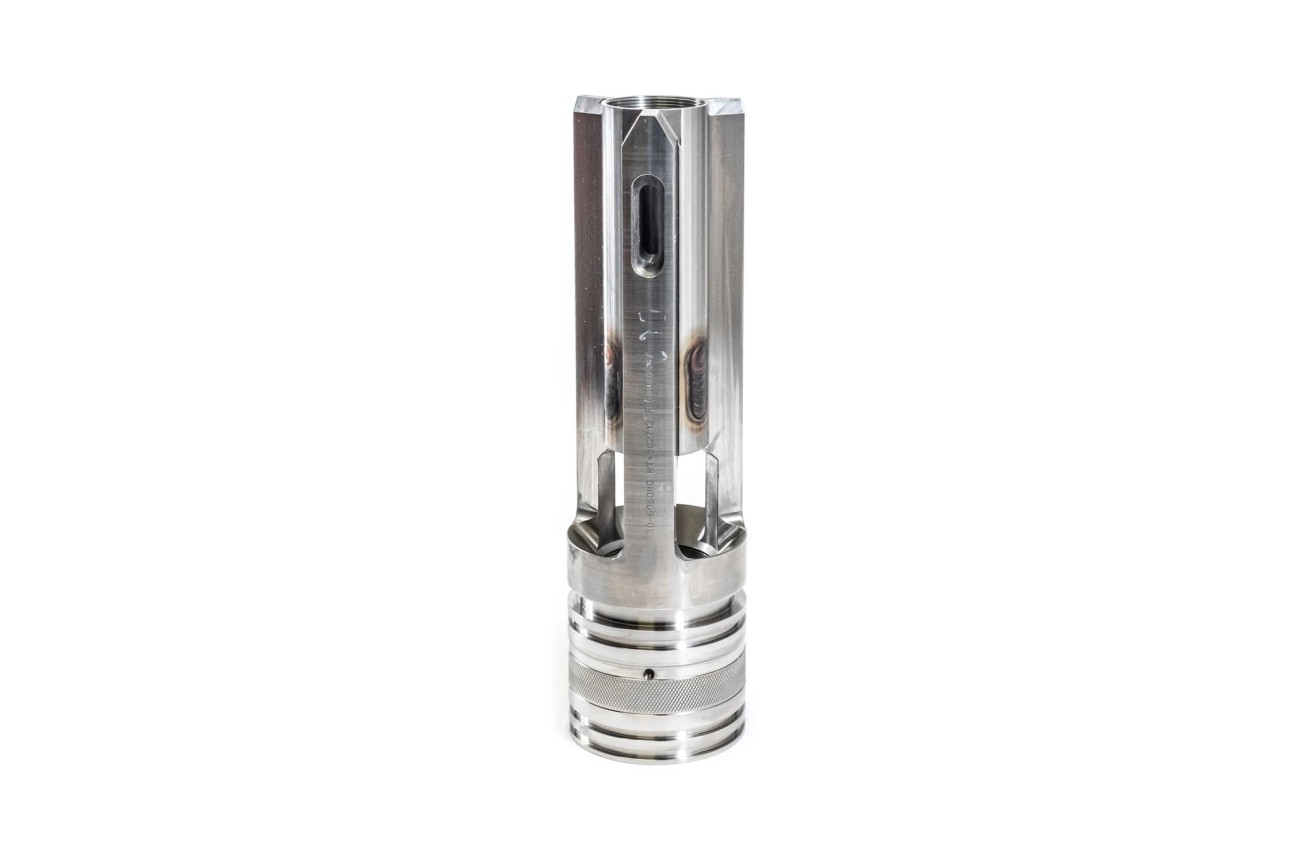

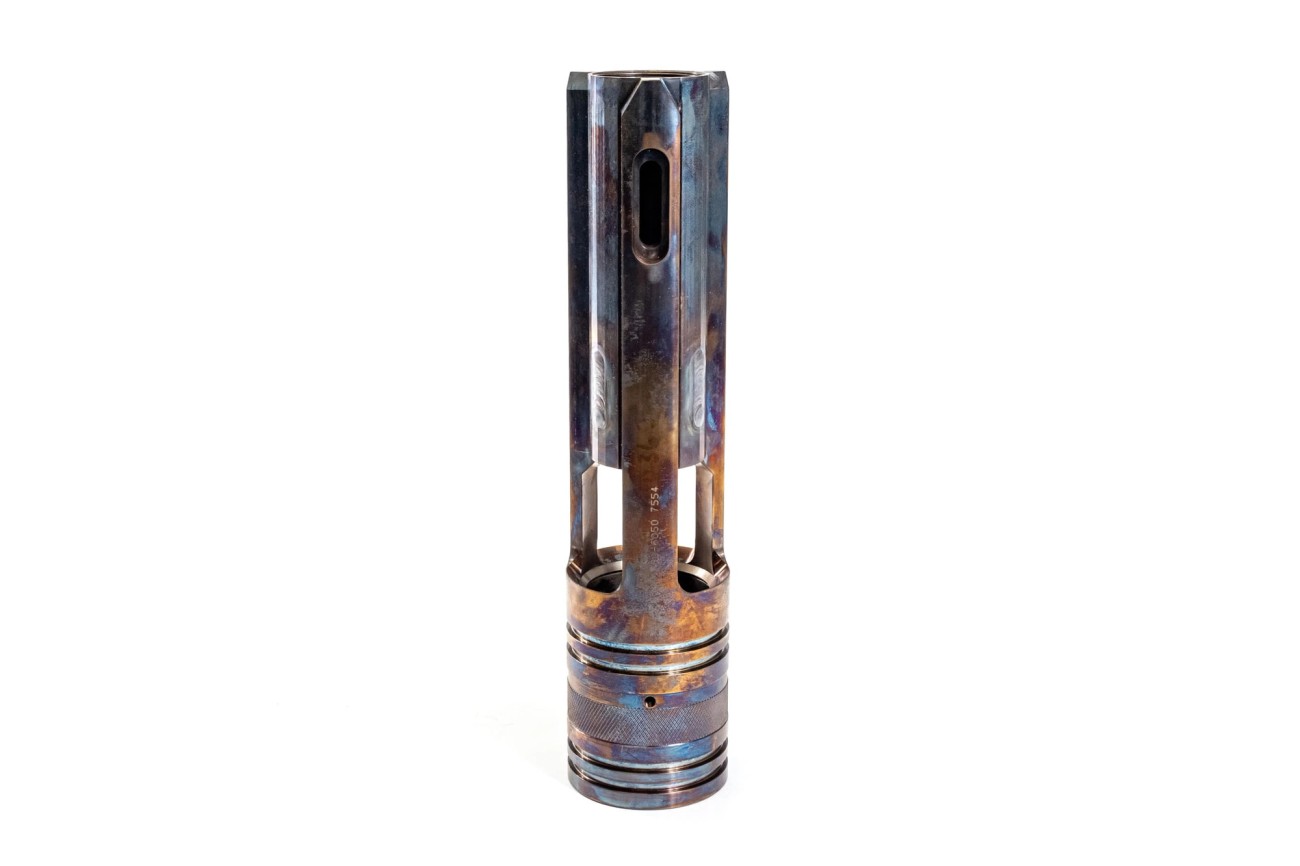

    Small Mule Shoe Assembly - 3-1/2"

    Includes Old Style Wear Cuff, Key & Retainer Rings

  • 30-6050

    Medium Mule Shoe Assembly - 4-3/4"

    Includes Wear Cuff, Key, Bottom Sleeve, Retainer Rings & Set Screws

  • 30-6052

    Medium Mule Shoe Sleeve - 4-3/4"

    With proprietary coating

  • 30-6059

    Large Mule Shoe Sleeve - 6-1/2"

    With Integ Ext. Lock Cuff

  • 30-6060

    Large Mule Shoe Sleeve - 6-1/2"

    NIT 50

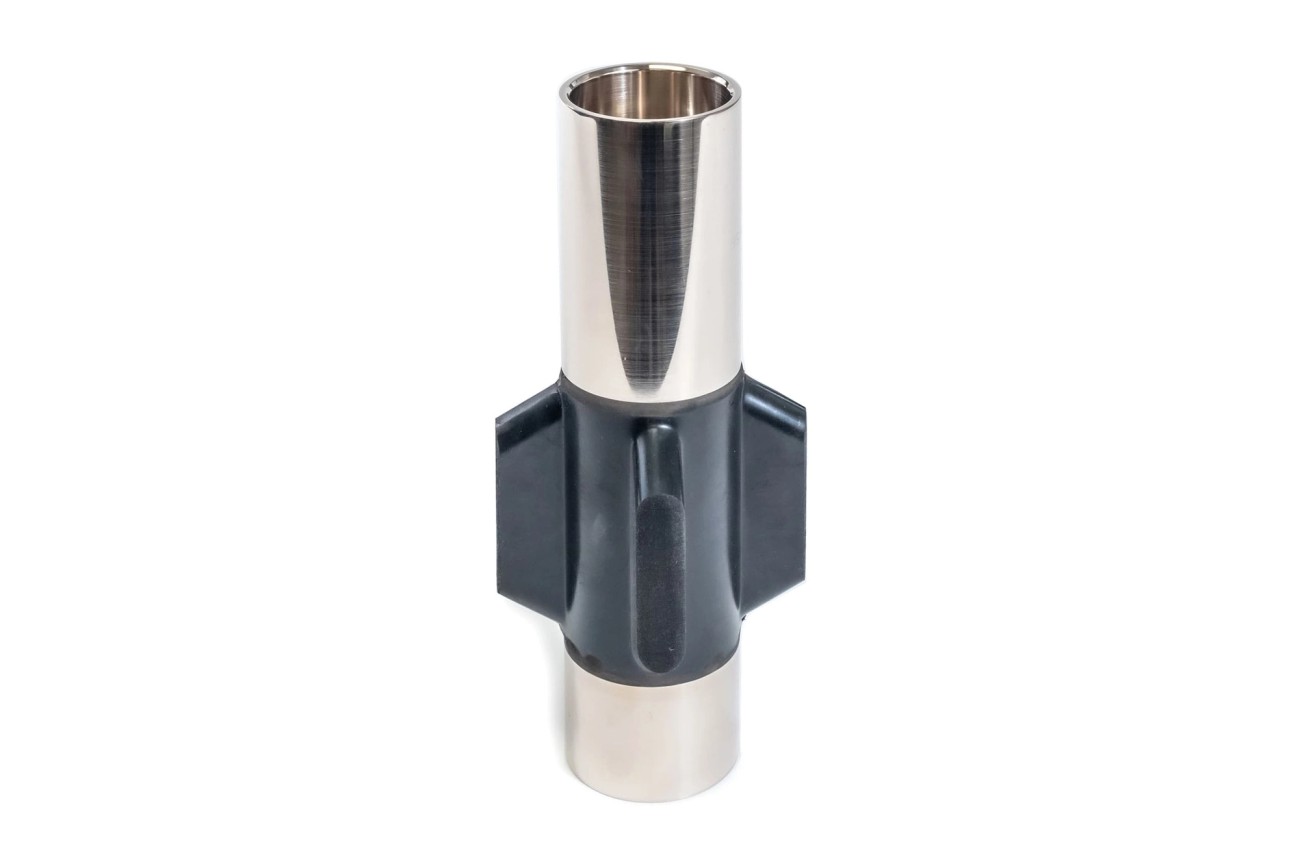

  • 36-112tm

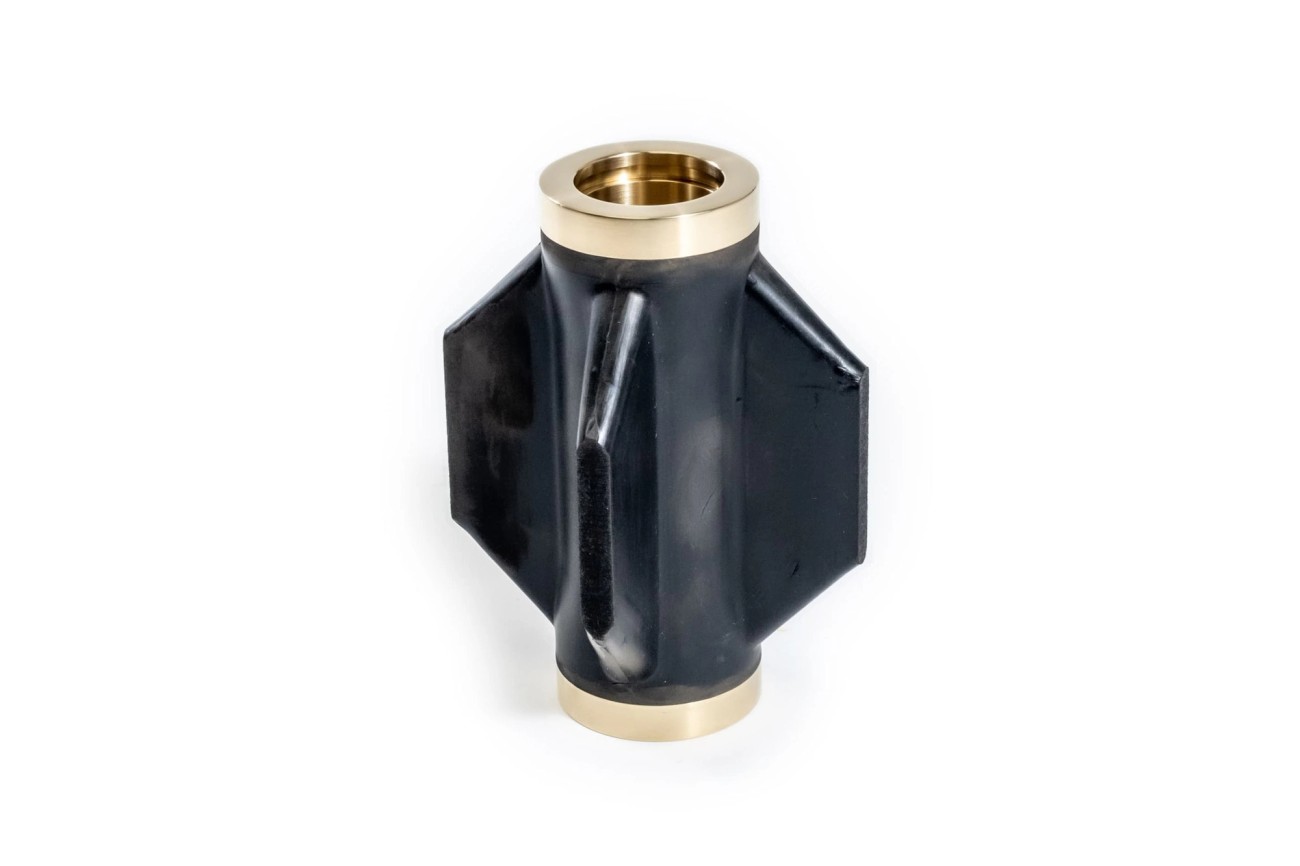

    Barrel End - 3.250"O.D.

    TM Body & Nitrile Rub Fin

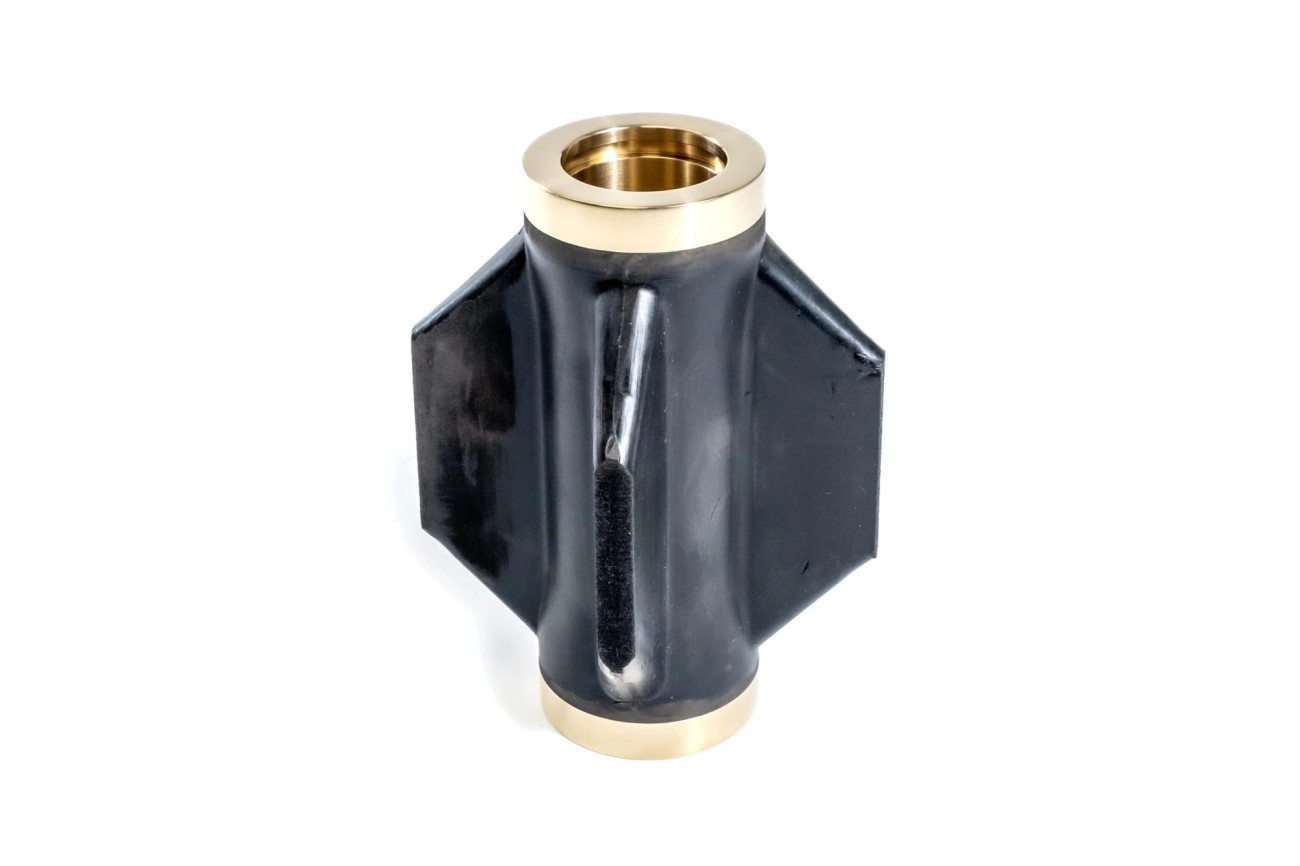

  • 30-6316

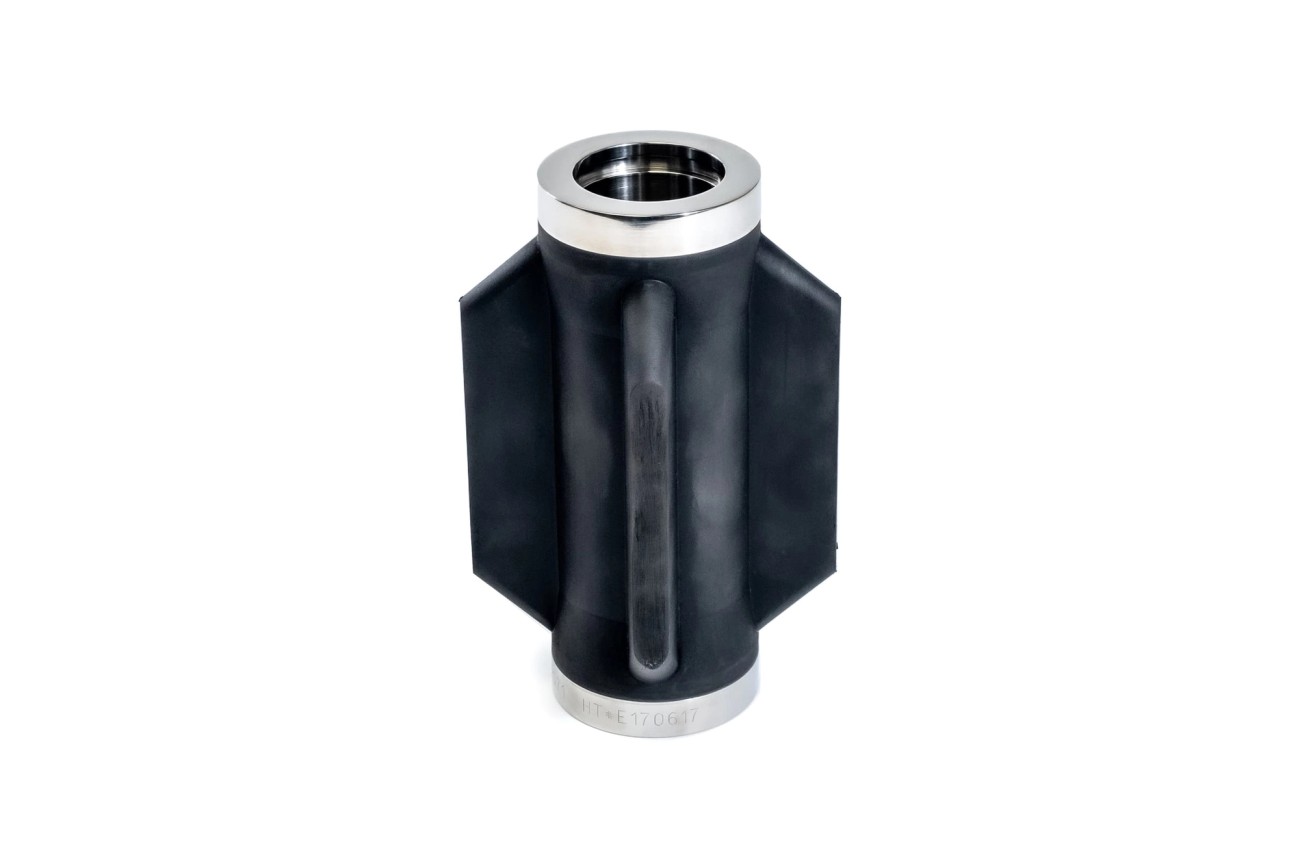

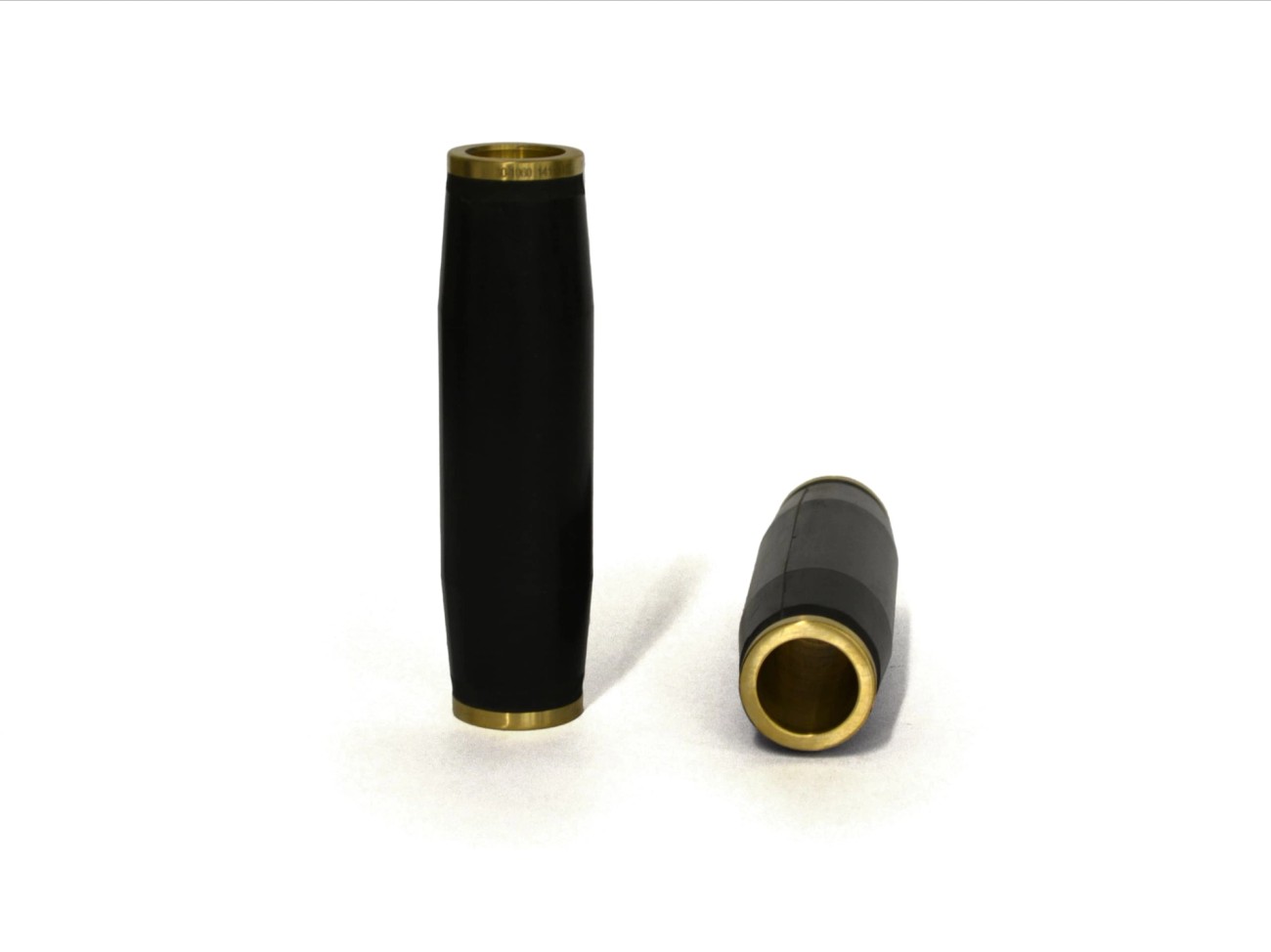

    Short Rubber Fin Sleeve - 5"

  • 30-6316s

    Short Rubber Fin Sleeve - 5"

  • 30-6316VRE

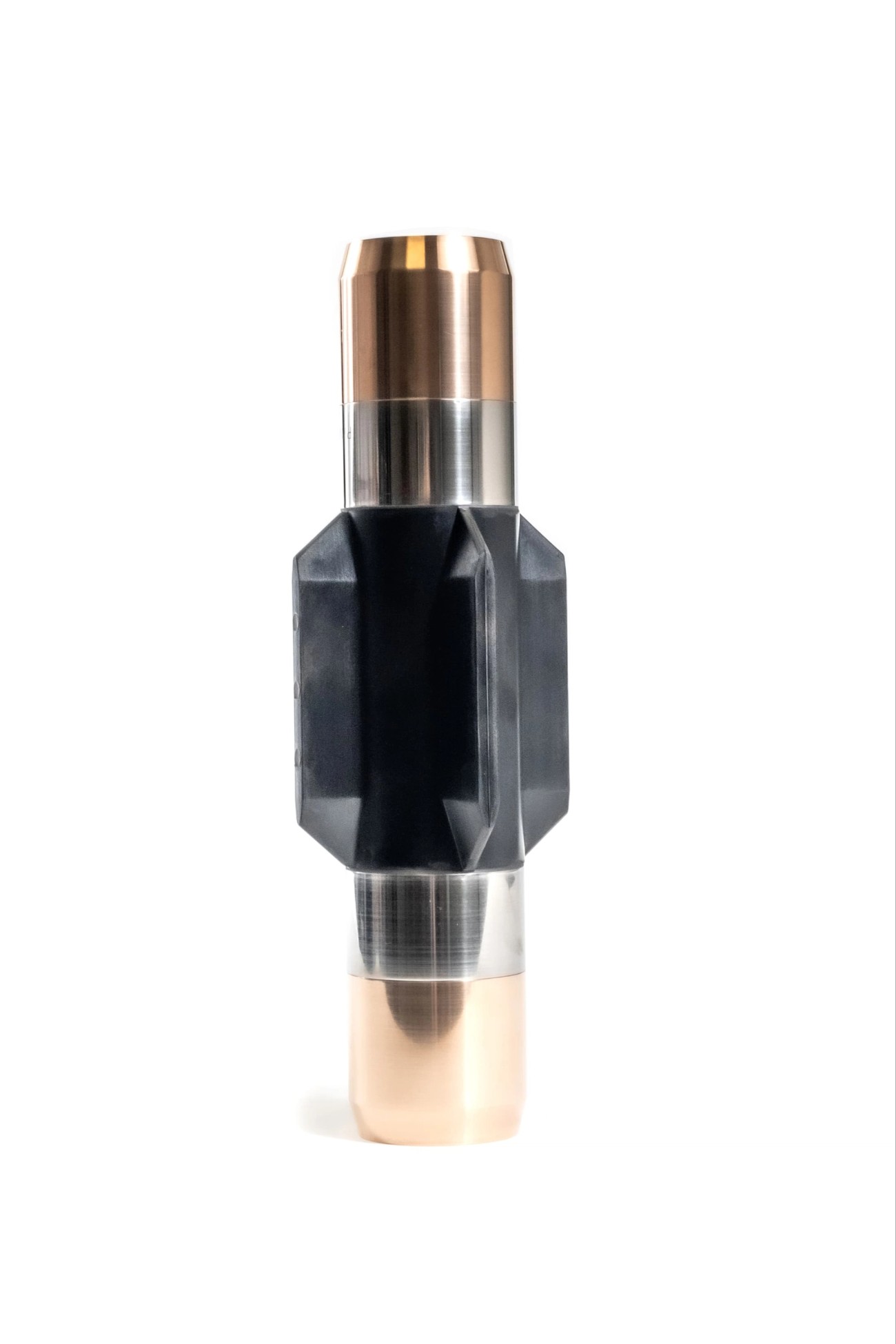

    Short Rubber Fin Sleeve - 5"OAL x 3 1/4"O.D.

    4 Blade, Vib Res Elast

  • 30-8500

    Fin Cutter - 4-1/2” XH; 17-4 HT

    Patented

  • 30-8501

    Fin Cutter - 4-1/2” IF; 17-4 HT

    Patented

  • 30-8502

    Fin Cutter - 3-1/2” IF; 17-4 HT

    Patented

  • 30-8503

    Fin Cutter - 6-5/8” FH; 17-4 HT

    Patented

  • 30-8504

    Fin Cutter - 6-5/8” REG; 17-4 HT

    Patented

  • 30-8505

    Fin Cutter - 4” FH; 17-4 HT

    Patented
